5/8 Inch x 12 Inches Galvanized Jaw and Eye Turnbuckles J541835
5/8 Inch x 12 Inches Galvanized Jaw and Eye Turnbuckles J541835
Working Load Limit: 3,500 lbs. | Made for in-line or straight pull applications only
Hot dip galvanized for durability and weather resistance | Designed to ASTM F1145 specifications
Features a jaw on one end which is fitted with a nut and bolt, or pin and cotter pin assembly. The other end has an elongated eye to maximize ease of attachment and minimize stress on the eye.

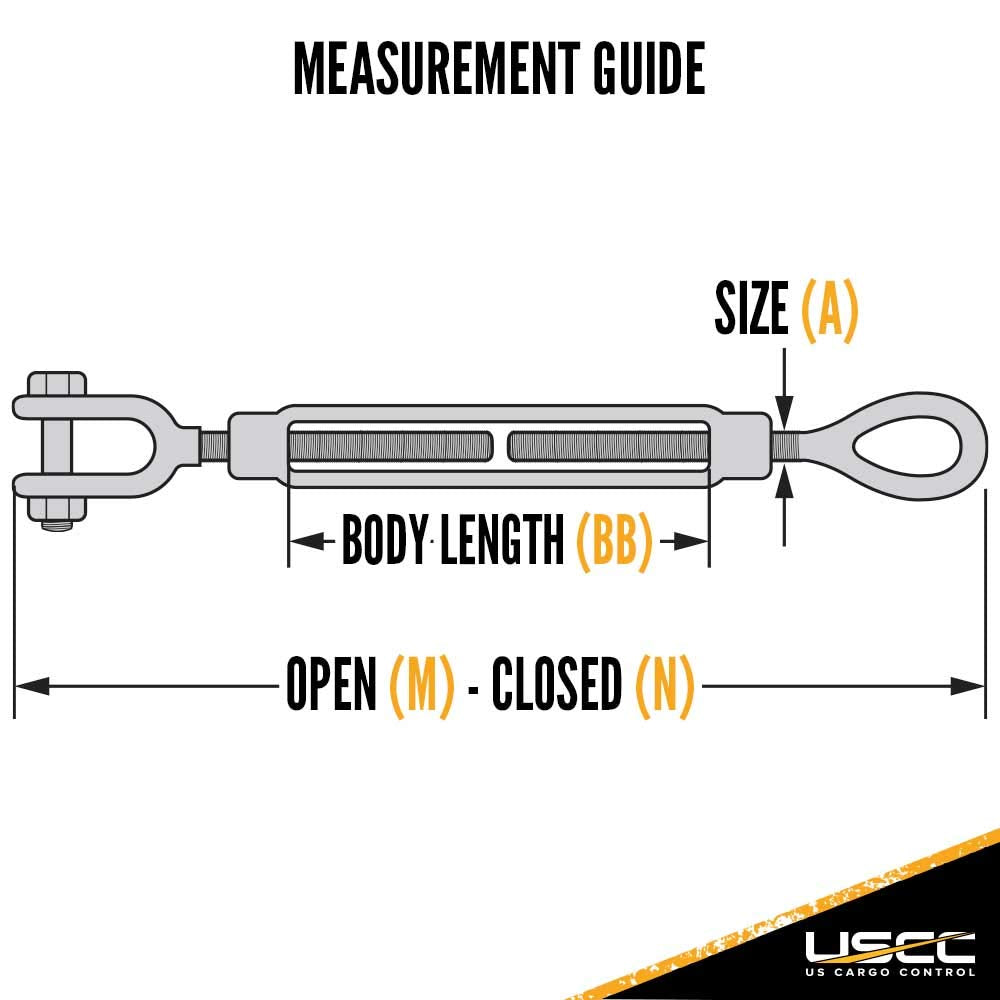

M= 34.53 | N= 21.28 | BB= 12 | A= 0.63 (All Measurements in Inches)

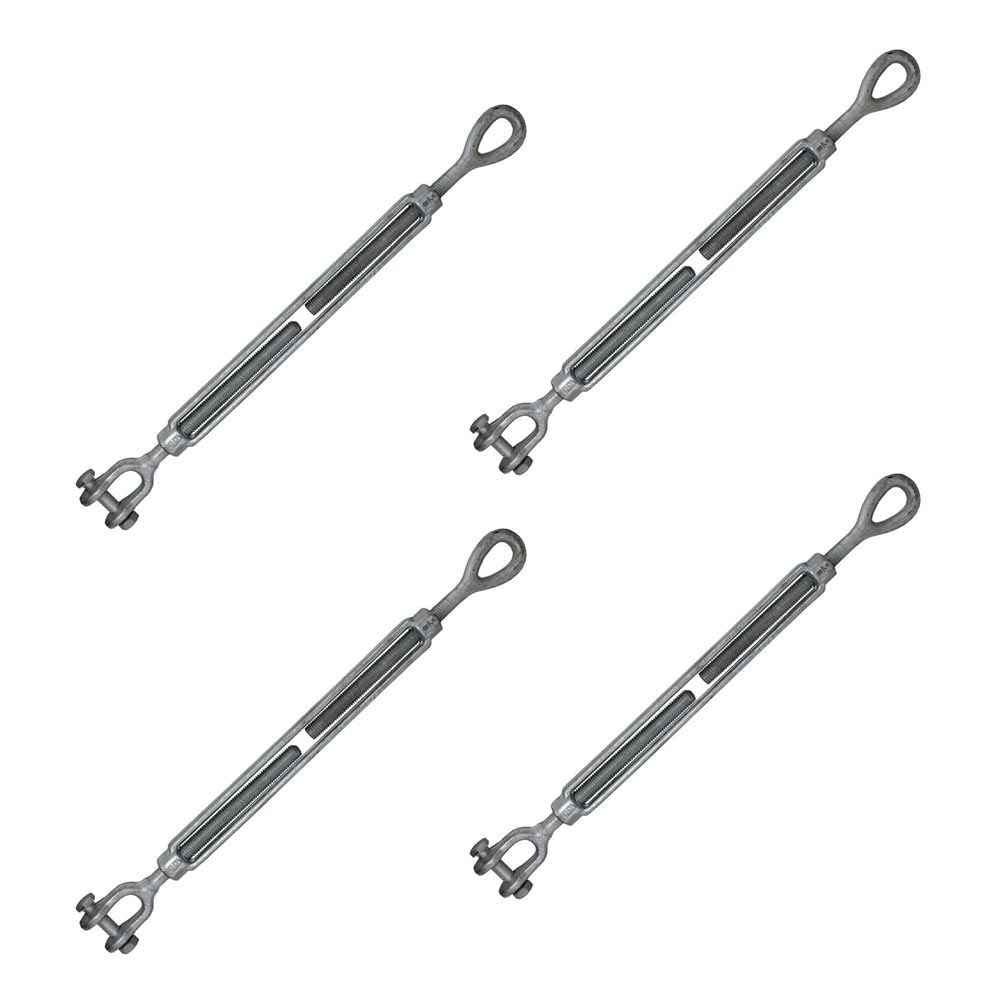

Quantity: 4 Turnbuckles
US Cargo Control jaw and eye turnbuckles are hot dip galvanized for durability and weather resistance. Our heavy duty turnbuckles are made for in-line or straight pull applications only. These galvanized turnbuckles feature a jaw on one end which is fitted with a nut and bolt assembly. The other end has an elongated eye to maximize ease of attachment and minimize stress on the eye. Turnbuckles are measured by the diameter of the bolt and the length of the opening of the turnbuckle body. The overall length of these turnbuckles will be longer than the stated length, as that only pertains to the opening of the turnbuckle body. These turnbuckles are designed to ASTM F1145 specifications.
